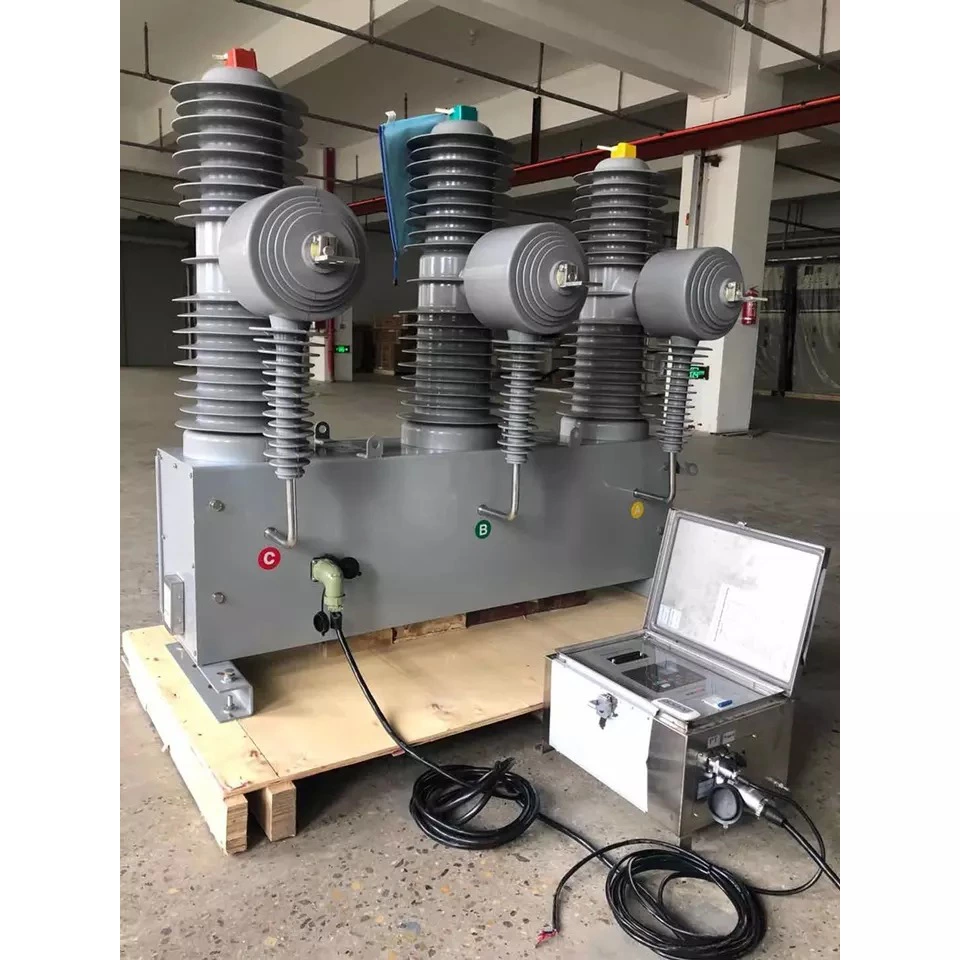

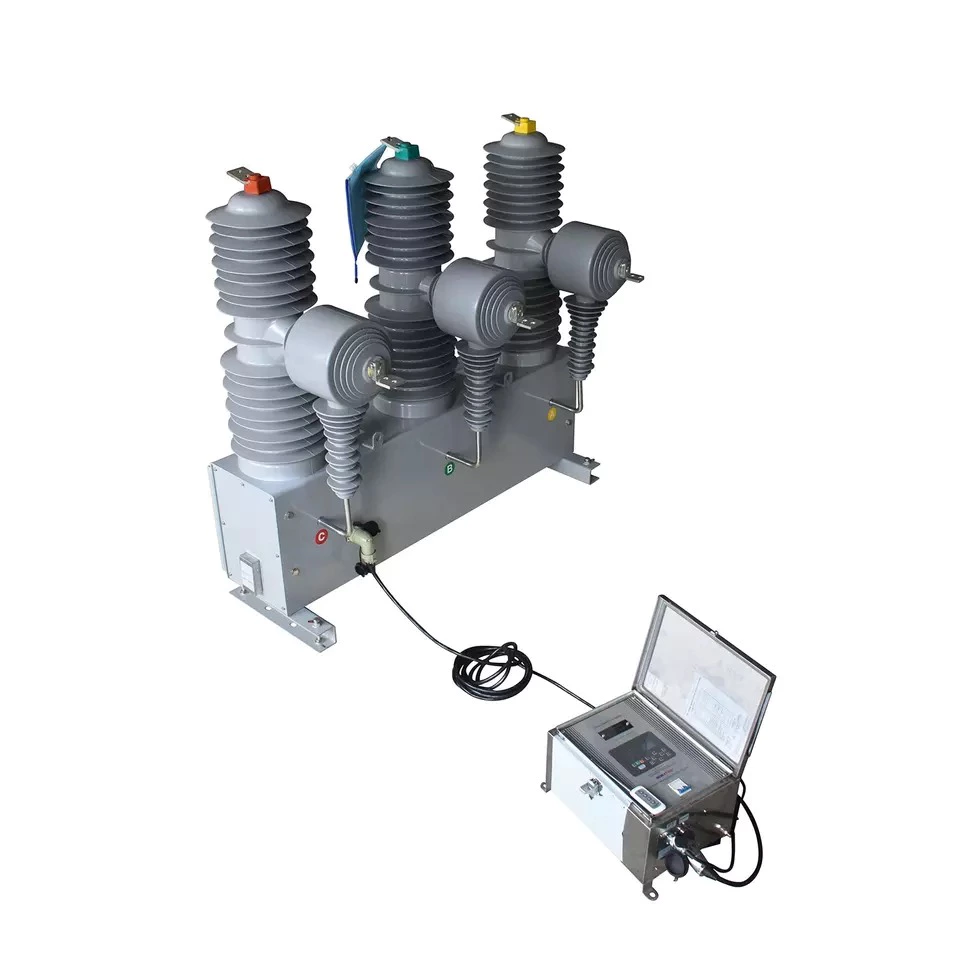

3 Phase Outdoor Pole Mounted Automatic Circuit Recloser ACR Vacuum Circuit Breaker 30KV 33KV 35KV 36KV 38KV 40.5KV

Our 30- 40.5 KV automatic reclosers have rating as defined in ANSI/IEEE Standard C37.60 (I) as summarised below:

Service Conditions:

a. Temperature-up to 45°C.

b. Altitude-up to 1,000 meters.

Rated Voltage

a. Nominal system voltage-33,000volt

b. Rated maximum voltage -40500 volts.

c. Power frequency withstand voltage-70 KV

Rated frequency - 50 Hertz

a tolerance of ± 5 percent. Rated symmetrical making current is the same value as the

rated symmetrical interrupting current, with asymmetrical

relationships as defined in ANSI/IEEE C37.60.

Rated minimum Impulse Withstand Voltage - 170 KV.

DESIGN

Boerstn 33KV three phase class III recloser is in accordance with the standard ANSI/IEEE C37.60.

The recloser is designed to provide self-contained 33KV circuit protection with series trip,solenoid operation and electronic control single break contact structure and fault interruption under vacuum. The vacuum interrupters are in accordance with ANSI/IEEE C37.85.  The recloser is accordance with ANSI/IEEE C37.85. The recloser is  designed to sense line-to-ground, line-to-line or three-phase fault currents and interrupt all three phases of the distribution circuit simultaneously. The recloser is equipped with a electronic type ground feature. For fault target, Automatic Circuit recloser will be provided with an indicator for detection of fault current on individual phase or ground. If the Electronic Control cubicle of Reclosers or Recloser itself require an auxiliary transformer, the manufacturer must provide the same at his cost. The recloser is provided with in-built auxiliary transformer of required rating to provide power supply to the control panel.
