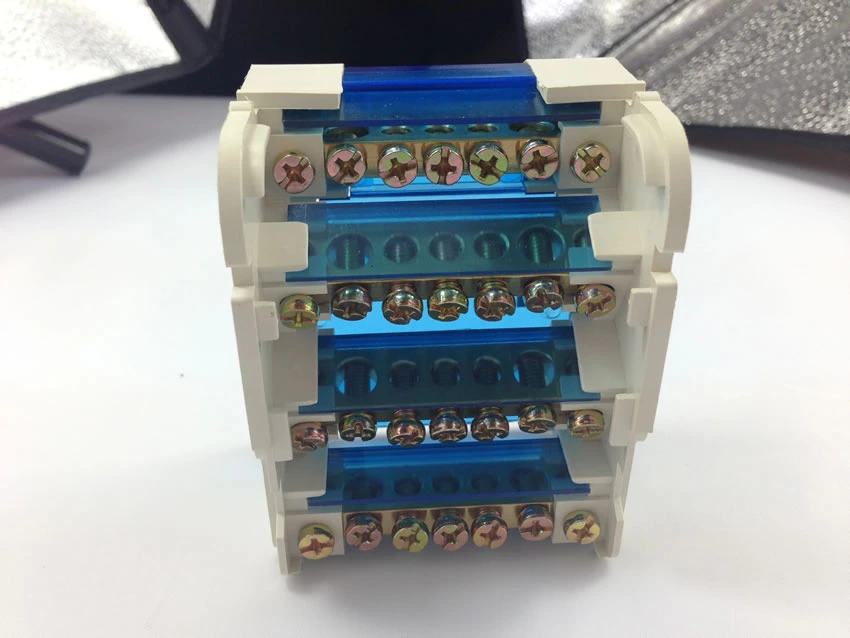

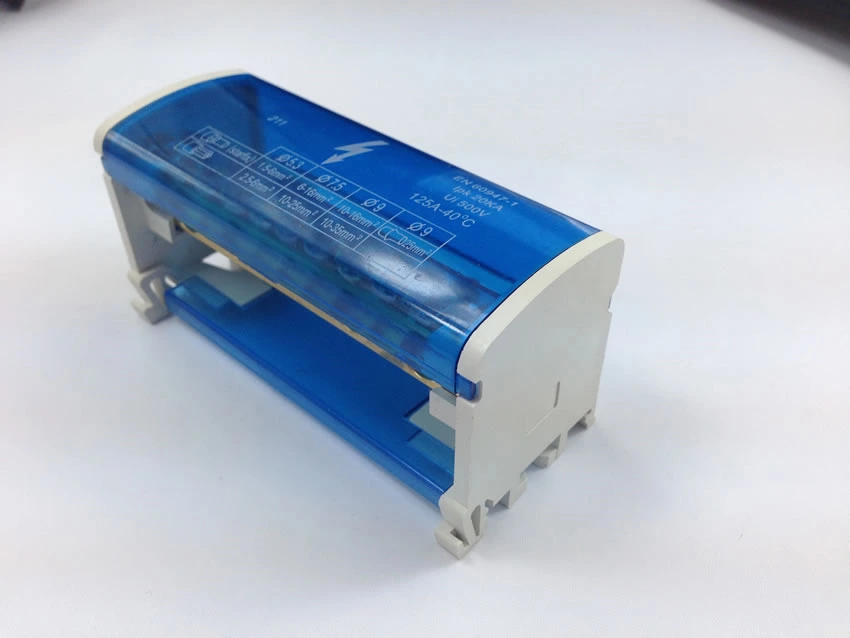

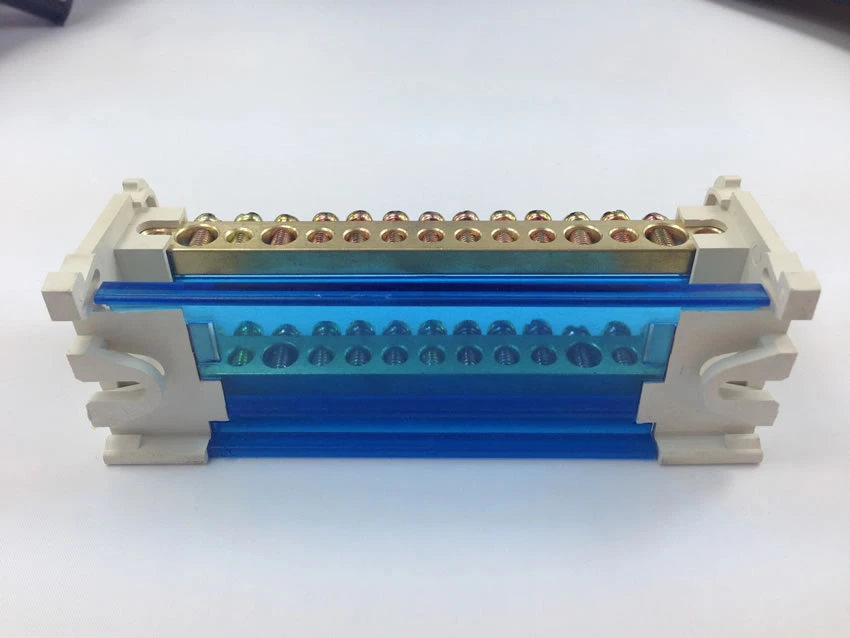

terminal block junction box
- Model:
- WL-016 (415)
- Type:
- Screw
- Material:
- Brass
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule . also can be customed
terminal block junction box
Material :
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 100°C
- The pressure line screws on : zinc-plated iron
- Rated Voltage: 250V-450V
- Color: according to sample picture or customers' requirements
Specifications :
| Itme NO. | Spec. | Rated current (A) | Rated voltage (V) | L1 | L2 | H | W | Max. section | Hole.Qty | Plastic Setting |
| W*h | MM | |||||||||
| 207 | 6.5*12 | 125A | 500V | 67 | 48 | 50 | 45 | 35mm² | 2*7 | PA |
| 211 | 6.5*12 | 125A | 500V | 100 | 86 | 50 | 45 | 35mm² | 2*11 | PA |
| 215 | 6.5*12 | 125A | 500V | 134 | 118 | 50 | 45 | 35mm² | 2*15 | PA |
| 407 | 6.5*12 | 125A | 500V | 67 | 48 | 50 | 90 | 35mm² | 4*7 | PA |
| 411 | 6.5*12 | 125A | 500V | 100 | 86 | 50 | 90 | 35mm² | 4*11 | PA |
| 415 | 6.5*12 | 125A | 500V | 134 | 118 | 50 | 90 | 35mm² | 4*15 | PA |
| 413 | 8*17 | 160A | 500V | 180 | 168 | 73 | 138 | 35mm² | 4*13 | PA |

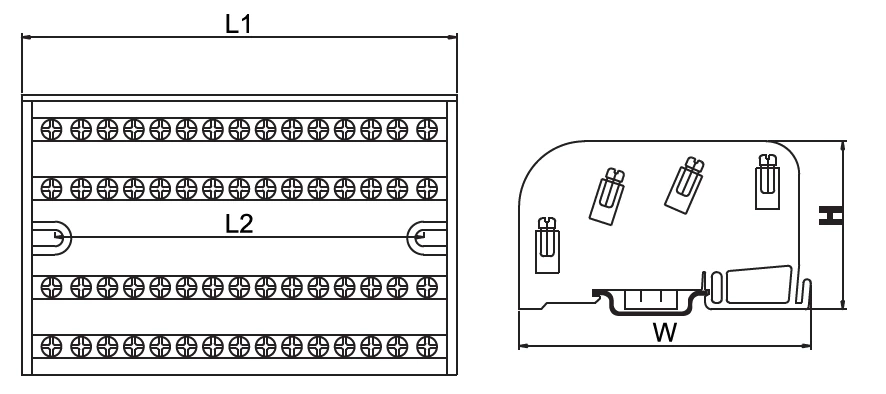

Drawings :
