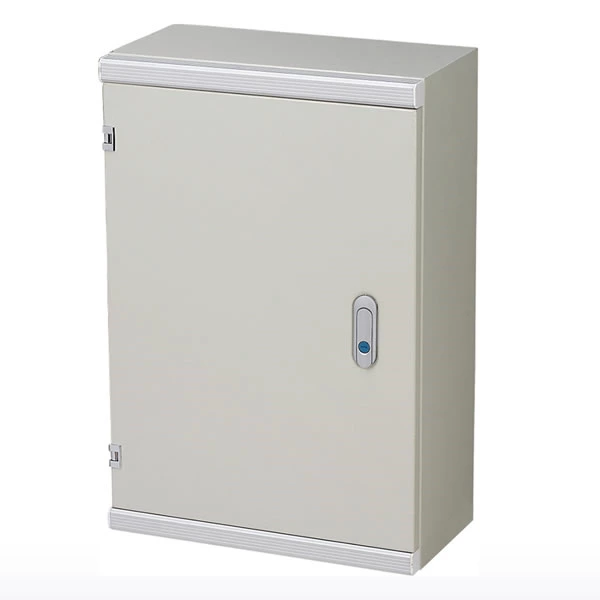

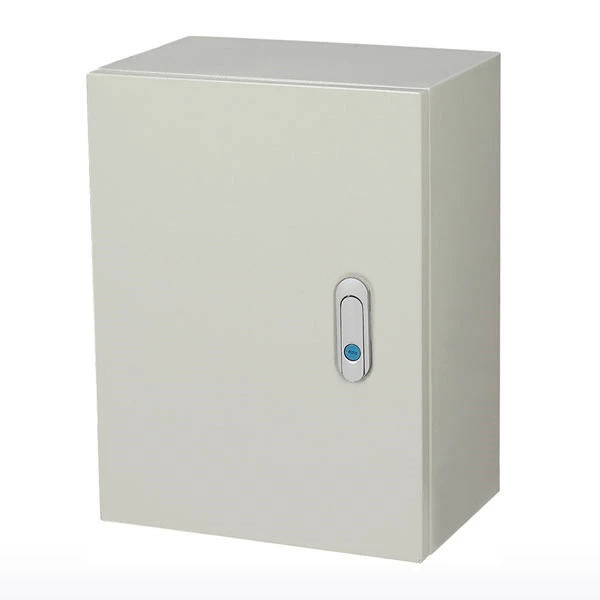

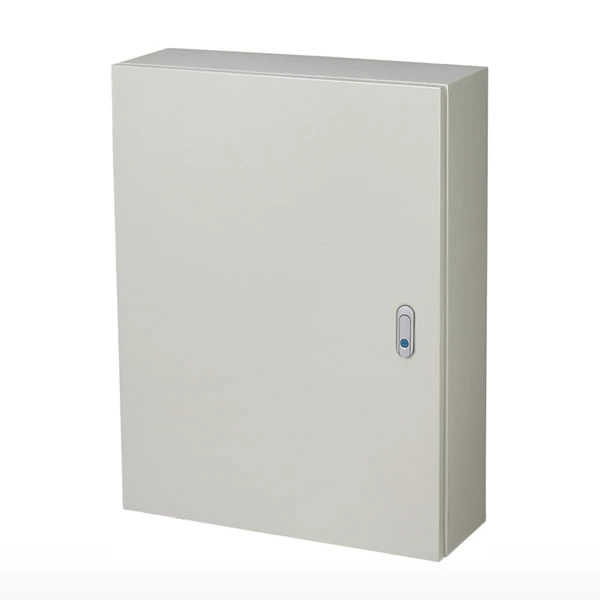

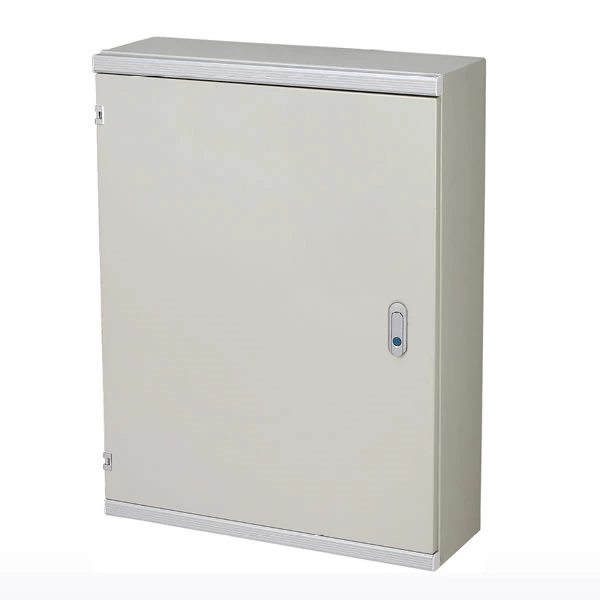

Top Quality Oem Service Waterproof Outdoor Metal Electrical Electric Switchboard Distribution Box For Electrical Power
- Type:
- Outdoor/indoor
- Material:
- Sheet Steel/Stainless steel
- Application:
- Electric Power Transmission
- Certificate:
- ISO9001:2008/ROHS/UL/SGS
- Waterproof Level:
- IP66
- Size:
- 300mm*300mm*150mm
General of Distribution Box:
- Seal Strip forming by Full-automatic Pouring Machine One-time, Self-skinning.Waterproof, Fireproof, High Temperature Resistance, High Intensity, Nice Outlook,etc.
- The Hinge Connected by Flange Screw, so that the Door can be Exchanged between Right and Left. No Self Off and No Crack.
- Brand New Structure for Screw Mounted, and Sealing Ring add to Connection of Bolts and Screws.Waterproof and Dustproof.
- Piercing Installation for Bottom Board,and Flange Screw for Connecting, Thus Easy to Assemble and Disassemble, and Much Stronger and Durable.
- New Design of Bottom Board Structure, can Acheive Greater Load-bearing, and can Meet Electrical Installation Requirements Better.
| MATERIAL | Sheet Steel |
| TYPE | Outdoor/indoor |
| OEM | Available |
| WATERPROOF IP66 | THICKNESS 1.5mm*2.0mm*2.0mm |
| COL OR | Customized |
| Item Name | Distribution Box |
| Material | Sheet Steel/Stainless Steel |
| Thickness | 1.5mm*2.0mm*2.0mm |
| Waterproof | IP66 |
| Certificate | CE,ROHS |
| OEM | Available |
| Color | RAL7035, and also can customized. |
| Item No. | Width (mm) | Height (mm) | Depth (mm) | Width for Installation (mm) | Height for Installation (mm) |
| GP-3025/14 | 250 | 300 | 150 | 190 | 325 |
| GP-3025/18 | 250 | 300 | 180 | 190 | 325 |
| GP-3030/14 | 300 | 300 | 150 | 240 | 325 |
| GP-3030/20 | 300 | 300 | 200 | 240 | 325 |
| GP-4030/14 | 300 | 400 | 140 | 240 | 425 |
| GP-4030/20 | 300 | 400 | 200 | 240 | 425 |
| GP-5040/14 | 400 | 500 | 140 | 340 | 525 |
| GP-5040/20 | 400 | 500 | 200 | 340 | 525 |
| GP-5040/23 | 400 | 500 | 230 | 340 | 525 |
| GP-6040/14 | 400 | 600 | 140 | 340 | 625 |
| GP-6040/20 | 400 | 600 | 200 | 340 | 625 |
| GP-6040/23 | 400 | 600 | 230 | 340 | 625 |
| GP-6050/14 | 500 | 600 | 140 | 440 | 625 |
| GP-6050/20 | 500 | 600 | 200 | 440 | 625 |
| GP-7050/20 | 500 | 700 | 200 | 440 | 725 |
| GP-7050/25 | 500 | 700 | 250 | 440 | 725 |
| GP-8060/20 | 600 | 800 | 200 | 540 | 825 |
| GP-8060/25 | 600 | 800 | 250 | 540 | 825 |
| GP-10080/20 | 800 | 1000 | 200 | 740 | 1025 |
| GP-10080/25 | 800 | 1000 | 250 | 740 | 1025 |
