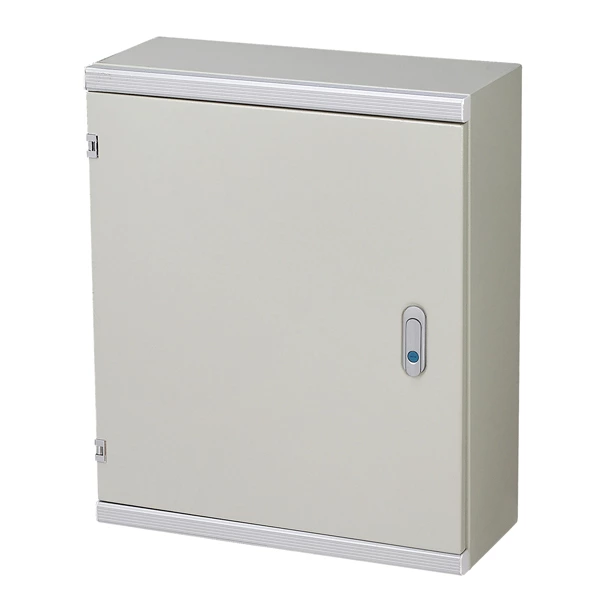

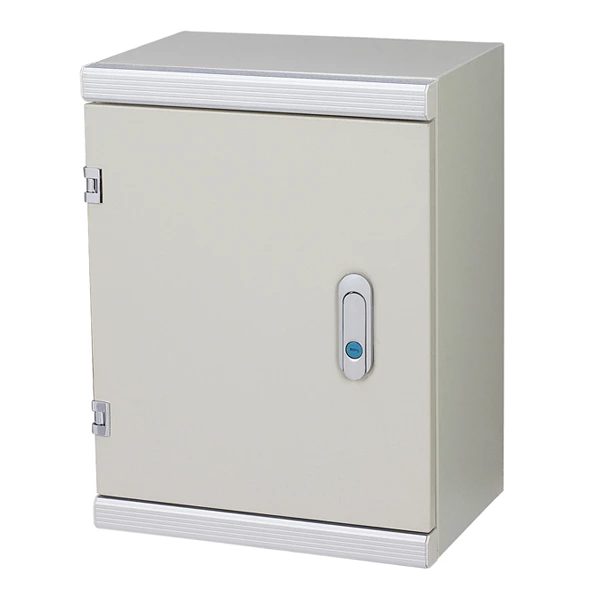

Sheet Steel Metal Fabrication Electric Switches Wall Box Electrical Distribution Box
- Type:
- Outdoor/indoor
- Material:
- Sheet Steel/Stainless steel
- Application:
- Electric Power Transmission
- Certificate:
- ISO9001:2008/ROHS/UL/SGS
- Size:
- 300mm*300mm*150mm
Product Description
| Item Name | Distribution Box |
| Material | Sheet Steel/Stainless Steel |
| Thickness | 1.0mm*1.2mm*1.2mm |
| Waterproof | IP66 |
| Certificate | CE,ROHS |
| OEM | Available |
| Color | RAL7035, and also can customized. |
General of Distribution Box:
| 1.Seal Strip forming by Full-automatic Pouring Machine One-time, Self-skinning. Waterproof, Fireproof, High Temperature Resistance, High Intensity, Nice Outlook,etc. | |
| 2.The Hinge Connected by Flange Screw, so that the Door can be Exchanged between Right and Left. No Self Off and No Crack. | |
| 3.Brand New Structure for Screw Mounted, and Sealing Ring add to Connection of Bolts and Screws. Waterproof and Dustproof. | |
| 4.Piercing Installation for Bottom Board,and Flange Screw for Connecting, Thus Easy to Assemble and Disassemble, and Much Stronger and Durable. | |
| 5.New Design of Bottom Board Structure, can Acheive Greater Load-bearing, and can Meet Electrical Installation Requirements Better. |
Parameters of Distribution Box:
| Item No. | Width (mm) | Height (mm) | Depth (mm) | Width for Installation (mm) | Height for Installation (mm) |
| GP-3025/20 | 250 | 300 | 200 | 190 | 325 |
| GP-3025/25 | 250 | 300 | 250 | 190 | 325 |
| GP-3030/20 | 300 | 300 | 200 | 240 | 325 |
| GP-3030/25 | 300 | 300 | 250 | 240 | 325 |
| GP-4030/20 | 300 | 400 | 200 | 240 | 425 |
| GP-4030/25 | 300 | 400 | 250 | 240 | 425 |
| GP-5040/20 | 400 | 500 | 200 | 340 | 525 |
| GP-5040/25 | 400 | 500 | 250 | 340 | 525 |
| GP-6040/20 | 400 | 600 | 200 | 340 | 625 |
| GP-6040/25 | 400 | 600 | 250 | 340 | 625 |
| GP-6050/20 | 500 | 600 | 200 | 440 | 625 |
| GP-6050/25 | 500 | 600 | 250 | 440 | 625 |
| GP-7050/20 | 500 | 700 | 200 | 440 | 725 |
| GP-7050/25 | 500 | 700 | 250 | 440 | 725 |
| GP-8060/20 | 600 | 800 | 200 | 540 | 825 |
| GP-8060/25 | 600 | 800 | 250 | 540 | 825 |
| GP-10080/20 | 800 | 1000 | 200 | 740 | 1025 |
| GP-10080/25 | 800 | 1000 | 250 | 740 | 1025 |

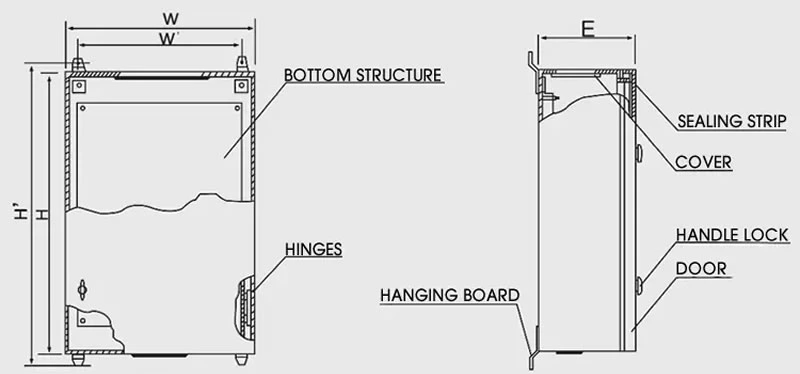

Dimension
