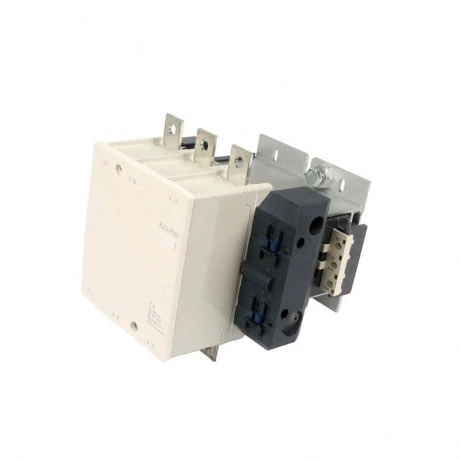

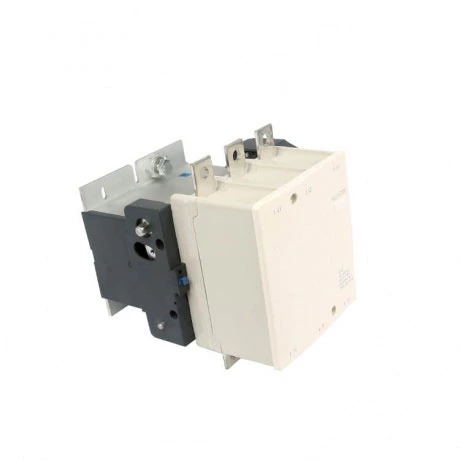

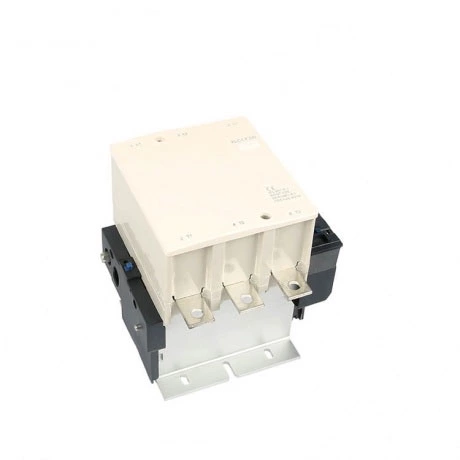

LC1-F330 AC Contactor
APPLICATION：
LC1 AC Contactor is applicable to the circuits up to the rated volatge 1000V AC 50Hz or 60Hz, rated current up to 780A, for long distance breaking Cir-cuit and frequently starting or controlling the motor. It also can be used for the contorl of distrbution circuits of rated current from 200A to 1600A
SPECIFICATIONS：
| Type | LC1-F115 | LC1-F150 | LC1-F185 | LC1-F225 | LC1-F265 | ||
| Rated operation Current A | AC-3 | 115 | 150 | 185 | 225 | 225 | |
| AC-1 | 200 | 250 | 275 | 315 | 350 | ||
| Standard power ratings of 3-phase motors AC-3(KW) | 220/230V | 30 | 40 | 55 | 110 | 75 | |
| 380/400V | 55 | 75 | 90 | 110 | 132 | ||
| 415V | 59 | 80 | 100 | 110 | 140 | ||
| 440V | 59 | 80 | 100 | 110 | 140 | ||
| 500V | 75 | 90 | 110 | 129 | 160 | ||
| 660/690V | 80 | 100 | 110 | 129 | 160 | ||
| 1000V | 65 | 65 | 100 | 100 | 147 | ||
| Type | LC1-F330 | LC1-F400 | LC1-F500 | LC1-F630 | LC1-F780 | ||
| Rated operation Current A | AC-3 | 330 | 400 | 500 | 630 | 780 | |
| AC-1 | 400 | 500 | 700 | 1000 | 1600 | ||
| Standard power ratings of 3-phase motors AC-3(KW) | 220/230V | 100 | 110 | 147 | 200 | 220 | |
| 380/400V | 160 | 200 | 250 | 335 | 400 | ||
| 415V | 180 | 200 | 280 | 375 | 425 | ||
| 440V | 200 | 250 | 295 | 400 | 425 | ||
| 500V | 200 | 257 | 355 | 400 | 450 | ||
| 660/690V | 200 | 280 | 335 | 450 | 475 | ||
| 1000V | 160 | 185 | 335 | 450 | 450 | ||
