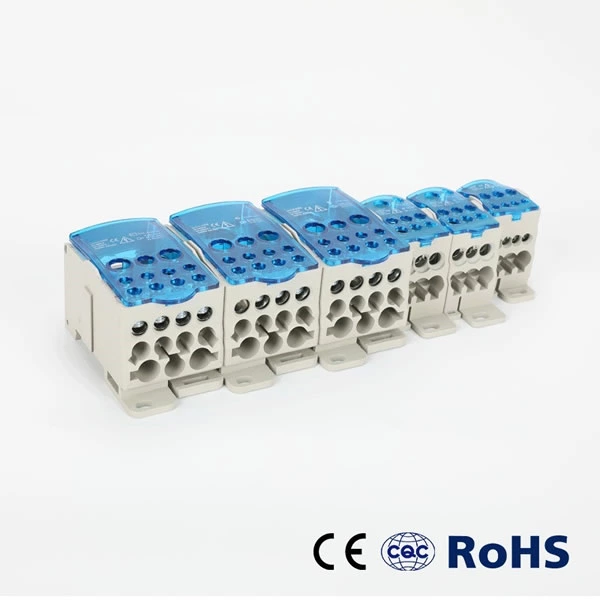

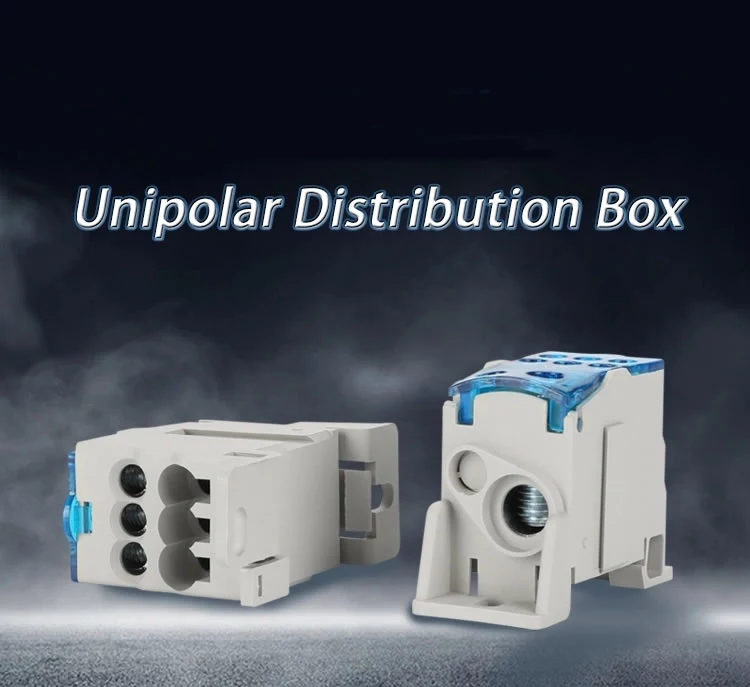

Unipolar Modular Panel Power Screw Cage Distribution Terminal Block
- Model:
- UKK 80A
- Type:
- Terminal Block
- Material:
- Copper
- Application:
- Electrical Connections
- Character:
- Environmental Protection
- Species:
- Terminal
- Production Process:
- Injection Molding
- Shape:
- Square
- Interface Type:
- AC/DC
- Certification:
- Ce, CQC, RoHS
- Input Size:
- 1 X 16mm²
- Output Size:
- 4 X 6mm², 2 X 16mm²
- Dimension:
- L65/H47/W29.5 mm
- Connection Method:
- Screw Connection
- Specification:
- 690V/80A

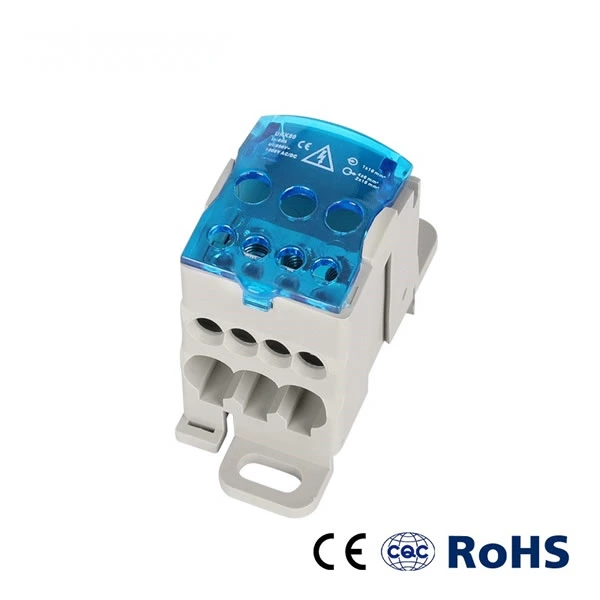

Unipolar Modular Panel Power Screw Cage Distribution Terminal Block

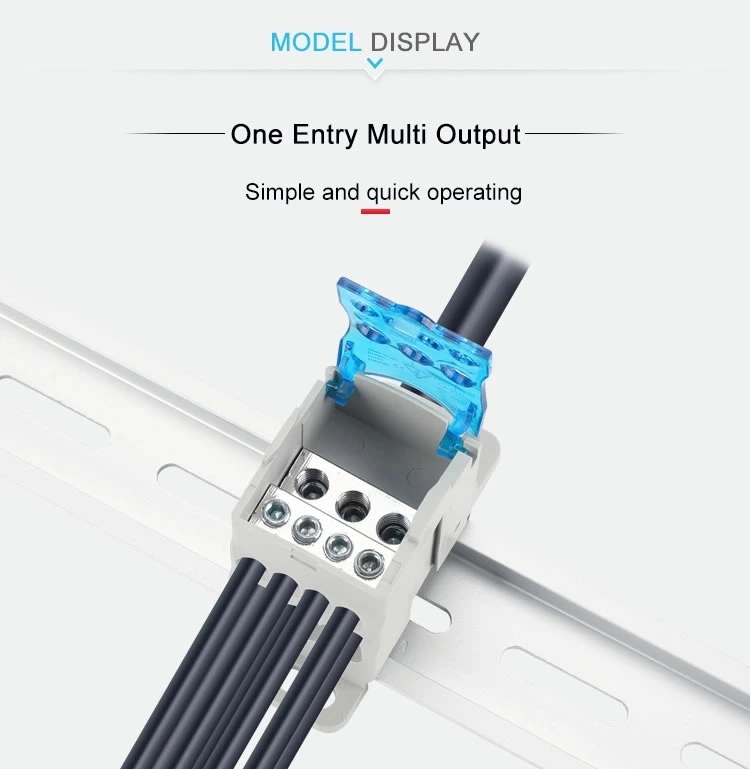

These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover. High conductivity with excellent electrical contacts.
- Compact design.
- Simple and Safety Operating

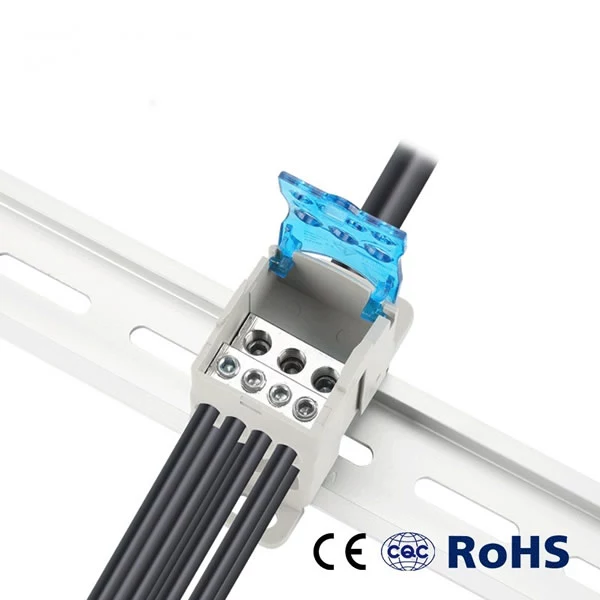

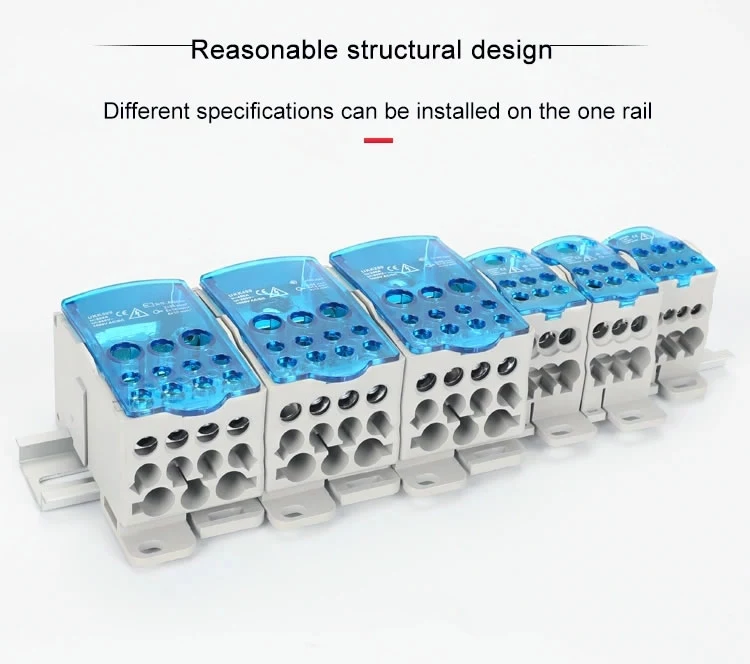

- Install on 35mm wide DIN rail or chassis mounting with screws.
- With Dust-proof and insulation cover

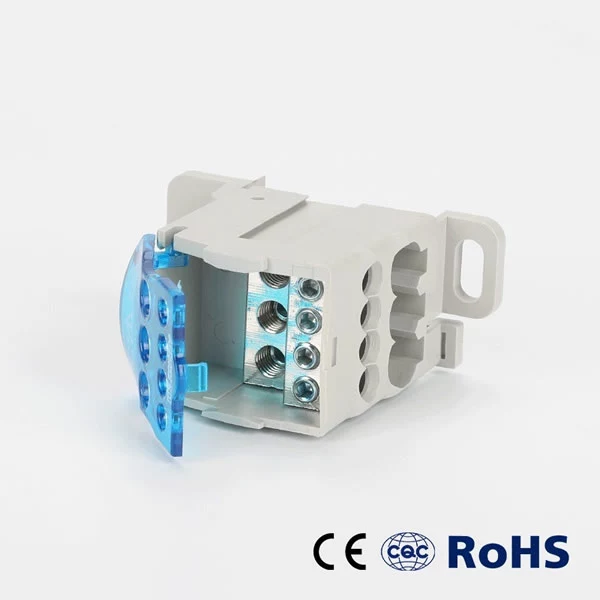

- hinged design with safety removable cover.

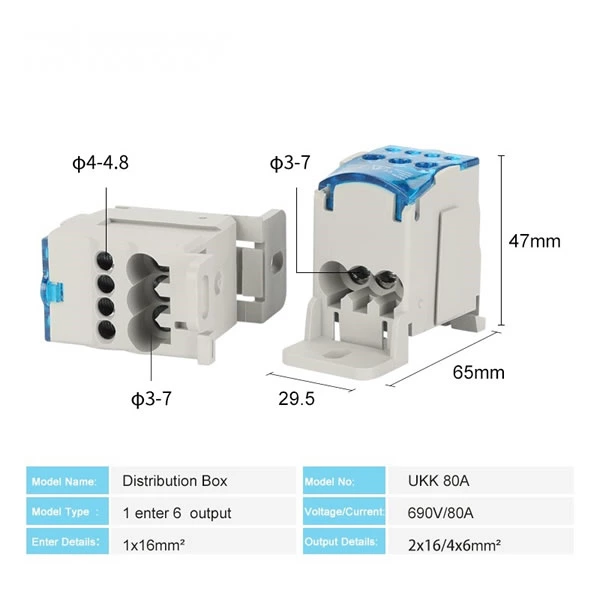

Technical Parameters
| Model No. | UKK 80A |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 29.5/47/65 |
| Connection method | Screw connection |

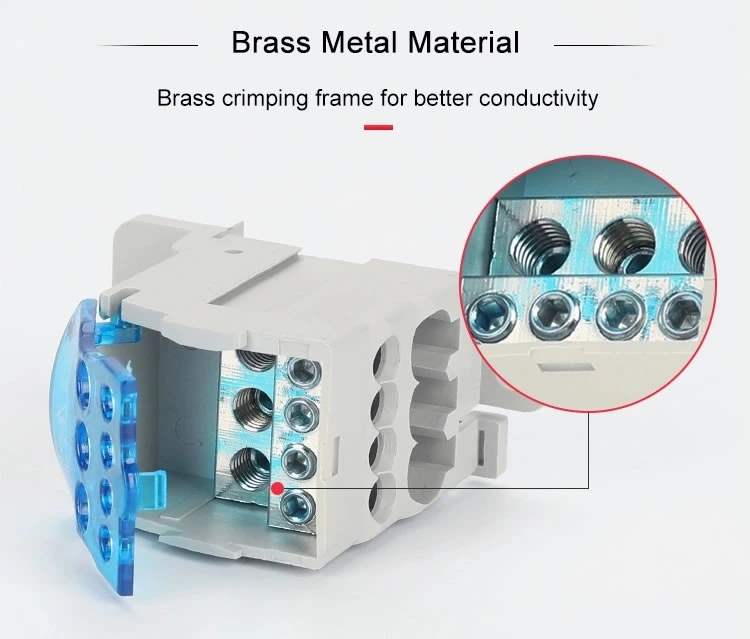

| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/80A |
| Entry Specification | 1X16 mm² |
| Output Specification | 2X16/ 4X16 mm² |
| Mounting Type | DIN Rail NS 35 |
| Certification | CE/RoHS/CQC/ISO 9001 |
