Screw Terminal Block
- Model:
- WL-023
- Type:
- Screw
- Material:
- Brass
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Black. also can be customed
Screw Terminal Block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 6 | 6*9 | 42 | 42 | 20 | 21 | 30 | 5.3 | M4*8 | ABS.PE |
| 8 | 6*9 | 55 | 55 | 20 | 21 | 30 | 5.3 | M4*8 | ABS.PE |
| 10 | 6*9 | 68 | 68 | 33 | 21 | 30 | 5.3 | M4*8 | ABS.PE |
| 12 | 6*9 | 71 | 71 | 33 | 21 | 30 | 5.3 | M4*8 | ABS.PE |
| 14 | 6*9 | 84 | 84 | 33 | 21 | 30 | 5.3 | M4*8 | ABS.PE |

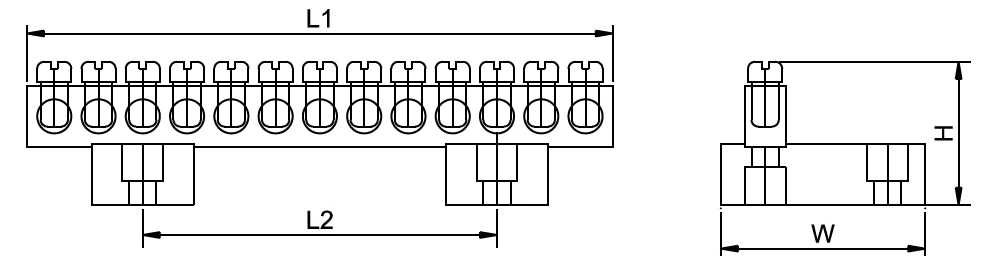

Drawing:
