pluggable terminal blocks connector
- Model:
- WL-011
- Type:
- Screw
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Yellow. also can be customed
pluggable terminal blocks connector
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 4 | 8*12 | 44 | 59.5 | 48.5 | 32 | 12.5 | 7 | M5*10 | PA.ABS |
| 6 | 8*12 | 54 | 76.5 | 65.5 | 32 | 12.5 | 7 | M5*10 | PA.ABS |
| 8 | 8*12 | 71 | 93.5 | 82.5 | 32 | 12.5 | 7 | M5*10 | PA.ABS |
| 10 | 8*12 | 87 | 110.5 | 99.5 | 32 | 12.5 | 7 | M5*10 | PA.ABS |
| 12 | 8*12 | 105 | 127.5 | 116.5 | 32 | 12.5 | 7 | M5*10 | PA.ABS |

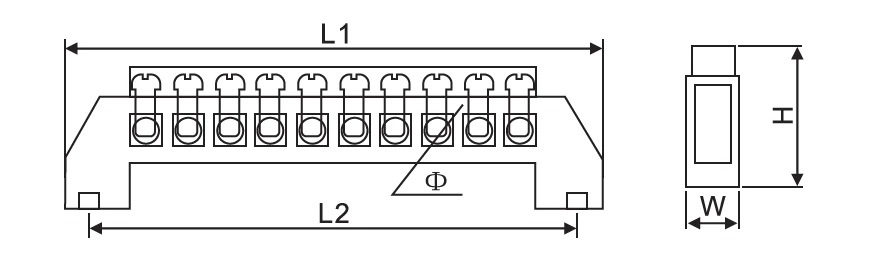

Drawing:
