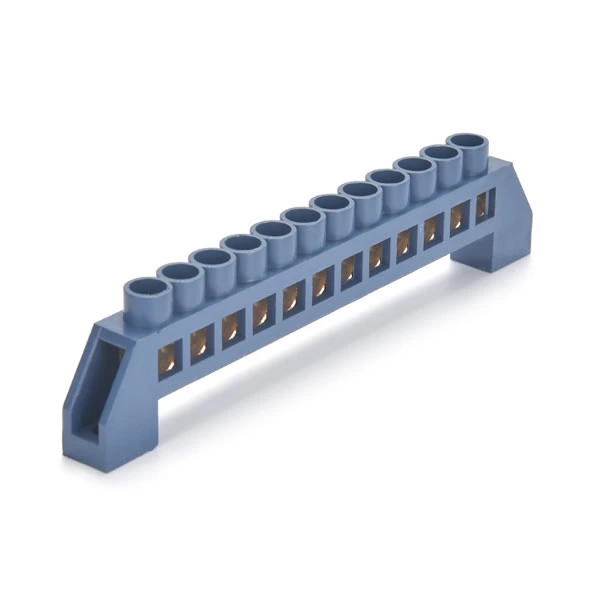

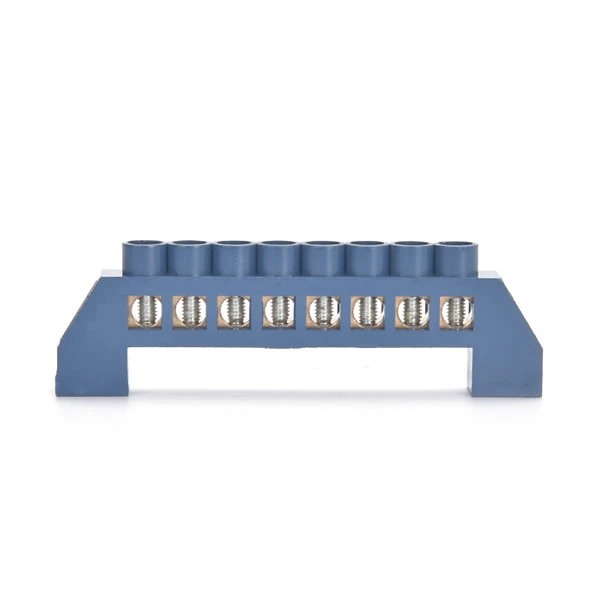

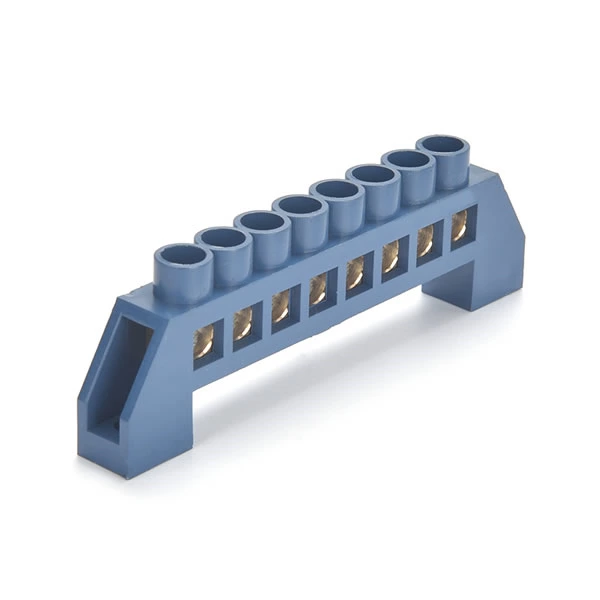

Neutral Link Terminal Block Screw Type Bus Bar
- Model:
- WK001N
- Type:
- Terminal Block
- Character:
- Environmental Protection
- Production Process:
- Injection Molding
- Shape:
- Square
- Interface Type:
- AC/DC
- Environmental Protection:
- General
- Connection Mode:
- Screw Connection
- Contact Termination Form:
- Pressure Welding
- Conductor Size:
- 26-16 AWG, 26-16AWG
- Cross Section, Solid/Soft Cable:
- 0.14-1.5 mm2 / 0.14-1.5 mm2
Neutral Link Terminal Block screw Type Bus bar
DESCRIPTION:
Screw Barrier Terminal Block.Each of terminals is insulated from the next, prevent circuit in disorder.
The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
Used for wires connecting of home appliances, electronic circuits, machines, etc.
- Rated Voltage: 250-450V
- With Green PE and Blue Neutral type.

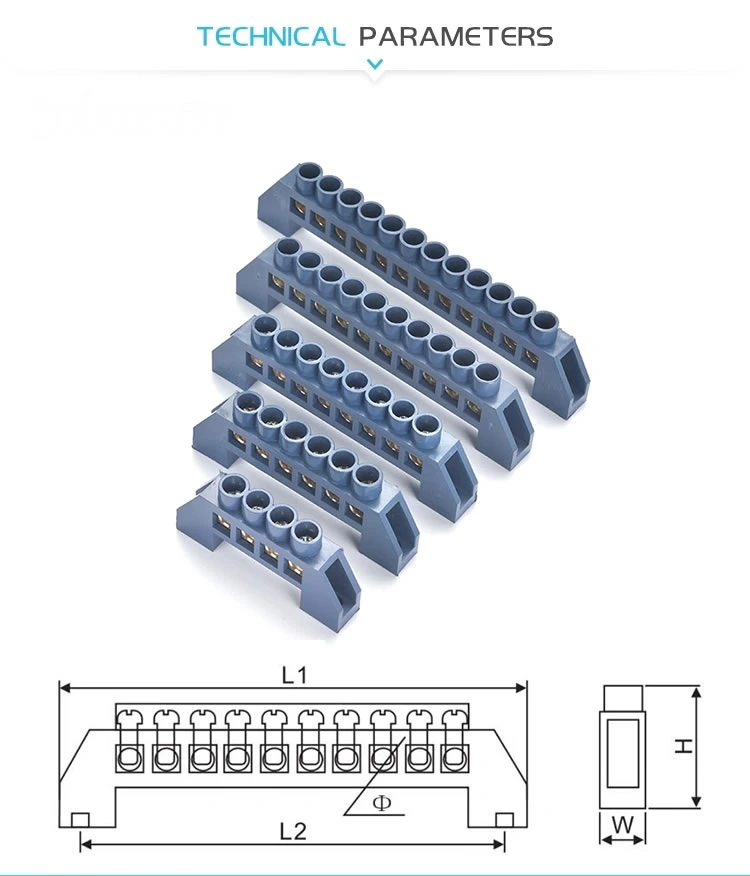

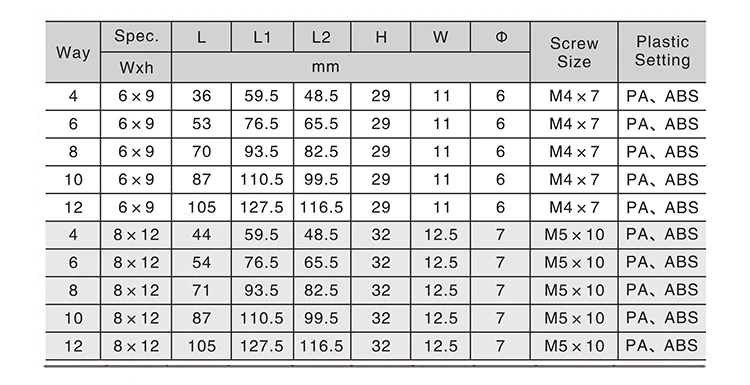

Technical Parameters:
