neutral/earth bar terminal block
- Model:
- WL-08
- Type:
- Screw
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Bule and Yellow. also can be customed
neutral/earth bar terminal block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 4 | 6*9 | 27 | 57 | 48 | 35 | 11 | 5 | M4*7 | PA |
| 6 | 6*9 | 40 | 57 | 48 | 35 | 11 | 5 | M4*7 | PA |
| 8 | 6*9 | 53 | 78 | 66 | 35 | 11 | 5 | M4*7 | PA |
| 10 | 6*9 | 66 | 89 | 77 | 35 | 11 | 5 | M4*7 | PA |
| 12 | 6*9 | 79 | 102 | 90 | 35 | 11 | 5 | M4*7 | PA |

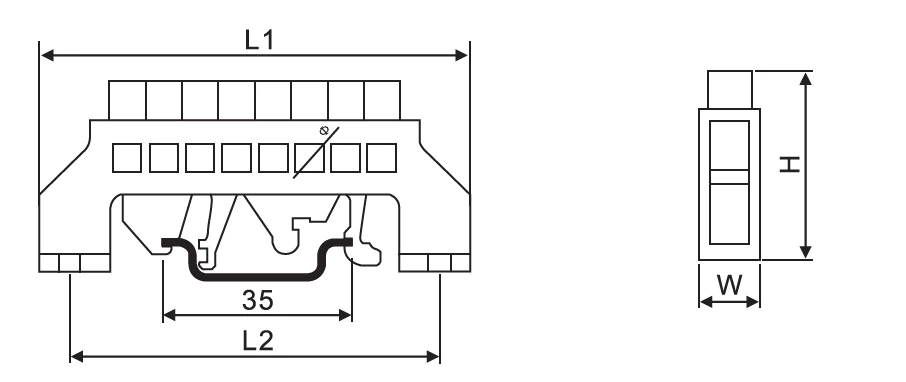

Drawing:
