Copper Terminal Busbar

DIN Rail Mounted Neutral Busbar Terminal Block Blue

Model:
WK002
Type:
Terminal Block
Character:
Environmental Protection
Species:
Square
Production Process:
Injection Molding
Interface Type:
AC/DC
Environmental Protection:
General
Connection Mode:
Screw Connection
Contact Termination Form:
Pressure Welding
Conductor Size:
26-16 AWG, 26-16AWG
Cross Section, Solid/Soft Cable:
0.14-1.5 mm2 / 0.14-1.5 mm2
Contact Now

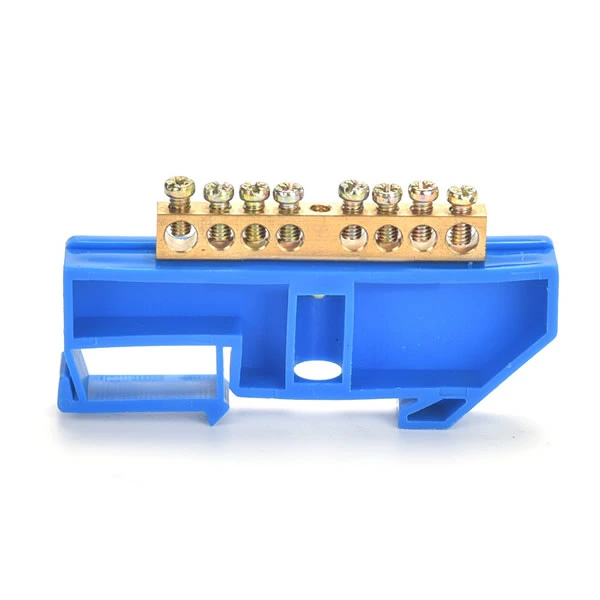

DIN Rail Mounted Neutral Busbar Terminal Block Blue

DESCRIPTION:

Screw Barrier Terminal Block.Each of terminals is insulated from the next, prevent circuit in disorder.

The set screws secure wires reliable contact and help prevent accidental contact with the terminals.

  1. Used for wires connecting of home appliances, electronic circuits, machines, etc.
  2. Rated Voltage: 250-450V.
  3. It can install on the NS 35 Din Rail.

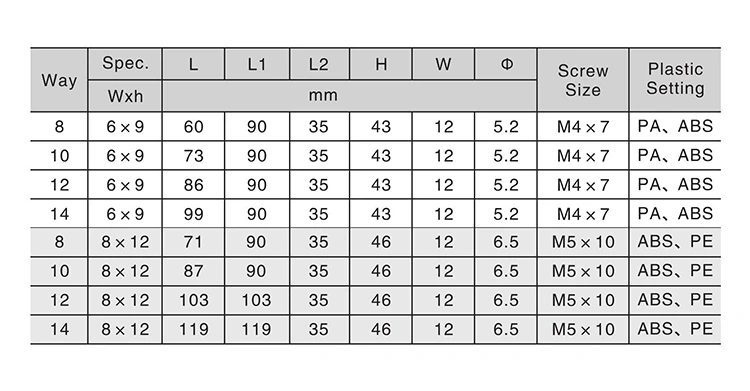

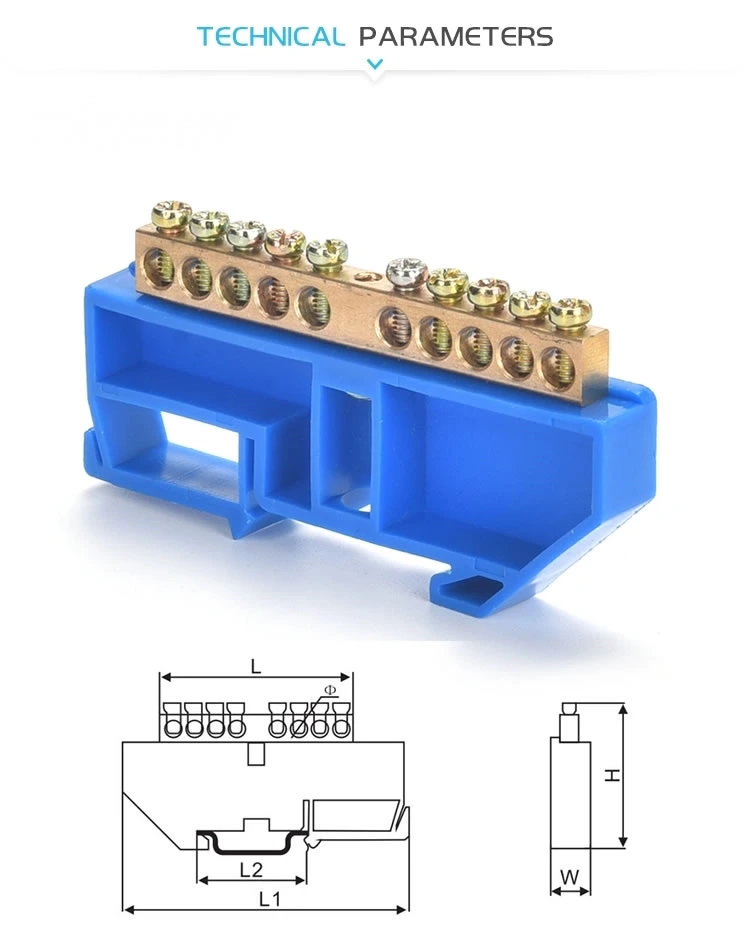

Technical Parameters
