5ways brass bar netutral terminal block
- Model:
- WL-019/5
- Type:
- Screw
- Material:
- Brass
- Application:
- Wire Connecting
- Rated Voltage:
- 250V-450V
- Conductor Size:
- 5 - 10 AWG
- Color:
- White
5ways brass bar netutral terminal block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 5 | 6*9 | 51 | 65 | 55 | 19 | 14 | 6 | M4*8 | PE |
| 10 | 6*9 | 59 | 110 | 100 | 19 | 14 | 6 | M4*8 | PE |

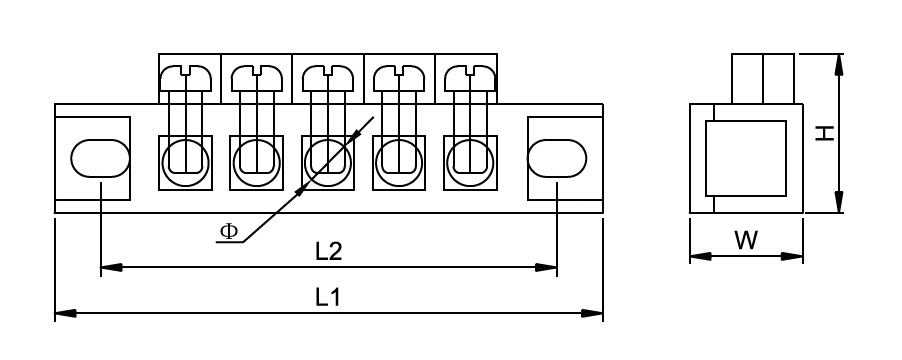

Drawing:
