12-way terminal block
- Model:
- WL-018
- Type:
- Screw
- Material:
- Brass
- Conductor Size:
- 11 - 20 AWG
- Brass:
- Middle Level
- Plastic Holder:
- ABS/ PE
- Color:
- Gray. also can be customed
12-way terminal block
Material
- PA, Polyamide 66, 94-2 grade. Inflaming retarding. Working Temperature: -30°C to 110°C
- ABS, good resist dissolve, good bounce impact fore. Working Temperature: -20°C to 70°C
- Brass, screw: iron plated zinc
- Voltage: 250V-450V
- Color: according sample picture or customized
Specifications
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Setting |
| W*h | mm | ||||||||
| 5 | 6*10 | 44 | 67 | 56 | 30 | 11 | 6 | M4*9 | ABS.PE |
| 10 | 6*10 | 86 | 110 | 99 | 30 | 11 | 6 | M4*9 | ABS.PE |

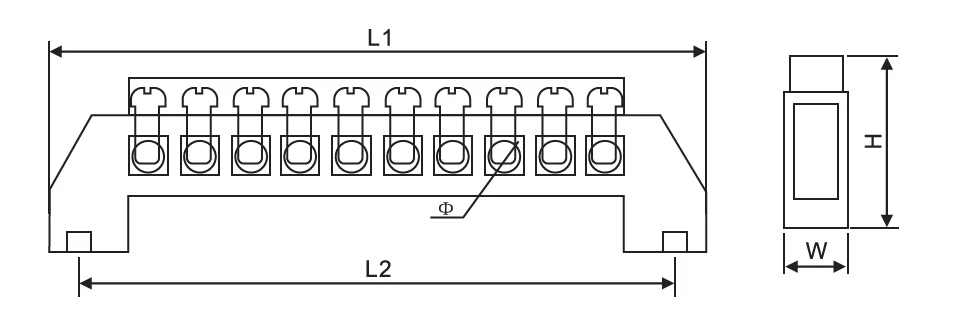

Drawing:
