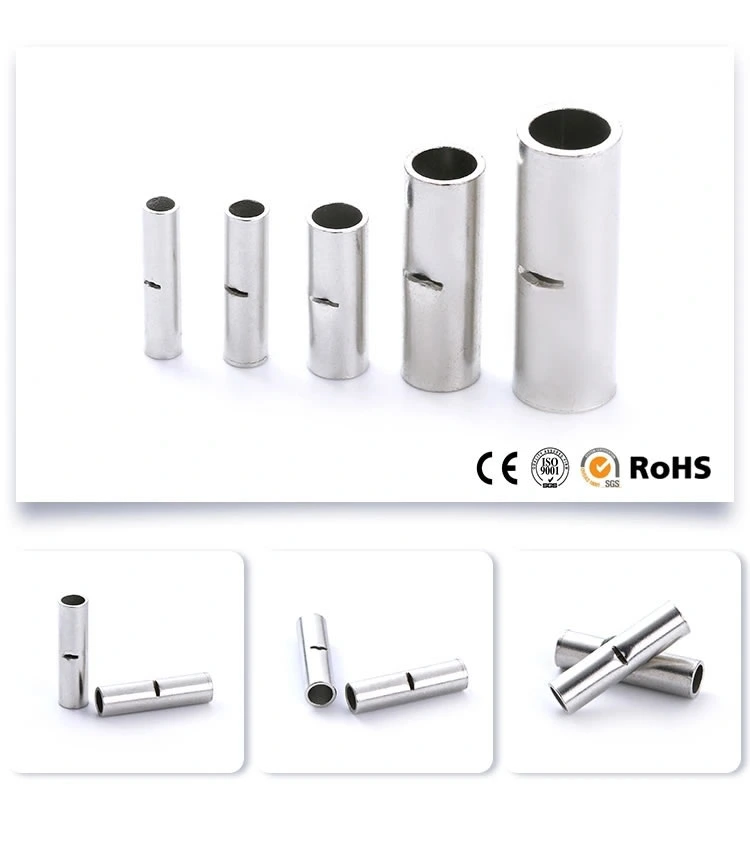

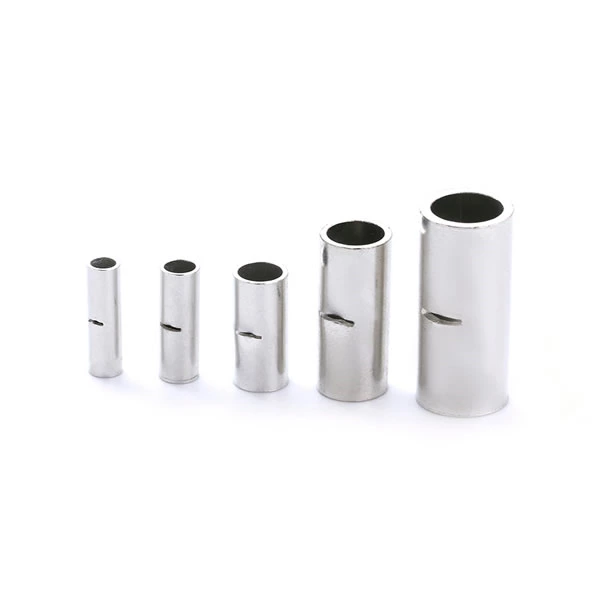

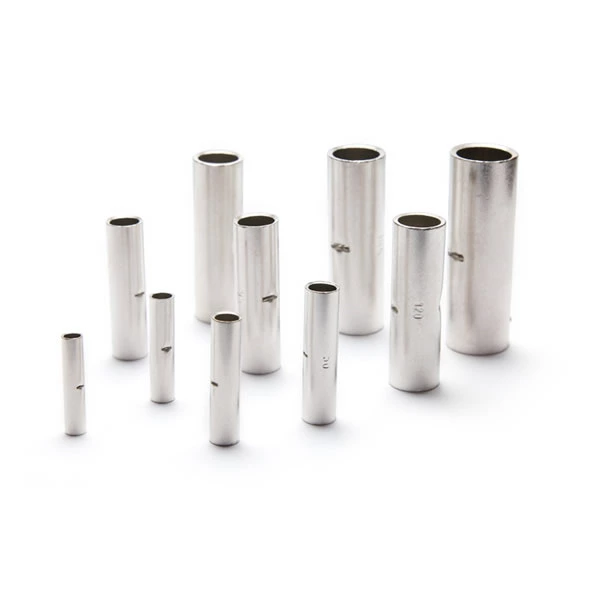

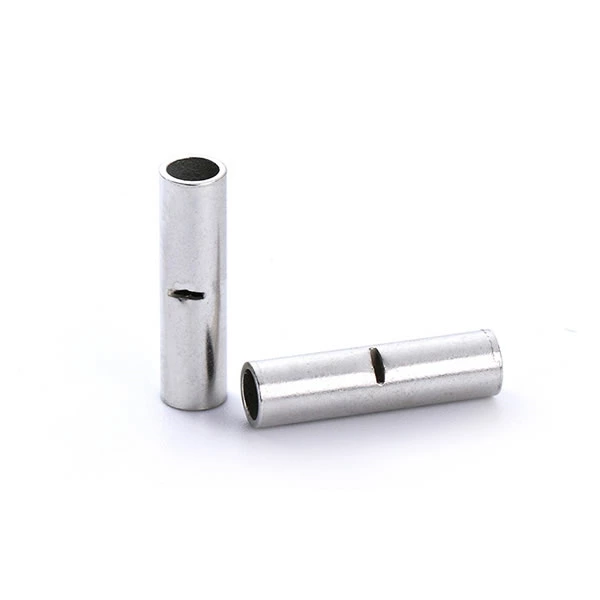

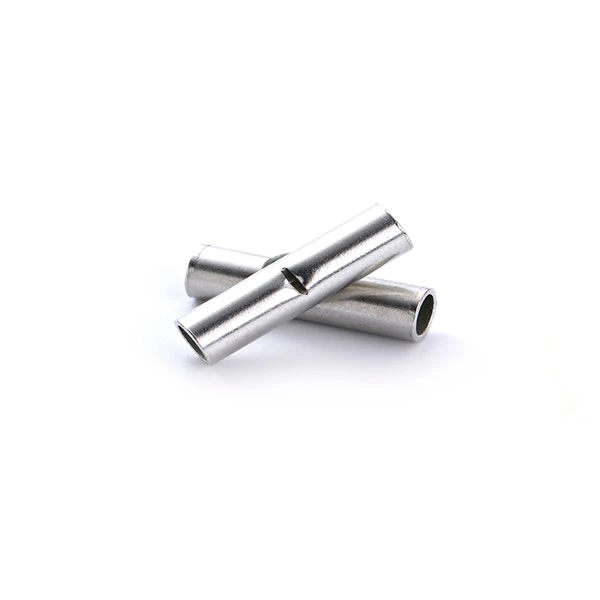

Wholesale Bn Copper Tube Non-Insulated Electrical Naked Butt Connectors
- Model:
- BN
- Type:
- Insulated Cord End Terminals
- Material:
- Copper
- Character:
- Insulation
- Species:
- Terminal
- Production Process:
- Cold Pressing
- Shape:
- Round
- Interface Type:
- BNC
- Certification:
- BS, VDE

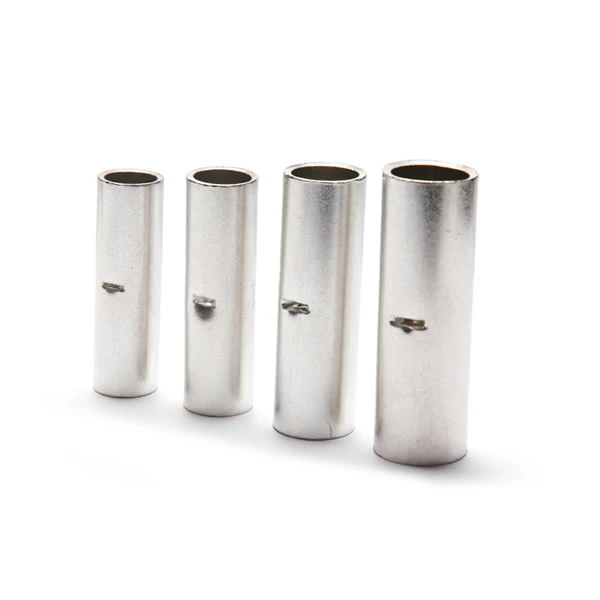

Wholesale BN Copper Tube Non-Insulated Electrical Naked Butt Connectors
| odel Numble | BN |
| Product Name | Wholesale Bn Copper Tube Non-Insulated Electrical Naked Butt Connectors |
| Certificate | SGS,CE,RoHS,ISO9001 |
| Material | Terminal Body:Copper Plating:Tin |
| Color | Naturre |
| Product Feature | 1.Easy to use 2.High quality and high purity copper |
| Packing | 100Pcs/Bag |
| Application | Electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation,railway,transportation, automobile manufacturing,household appliances,electrical installations,computers etc. |
| Function | Electrically conduction and connection |
| Delivery Time | Shipped in 7 days it depend on your order |
| OEM/ODM | Available |
| Payment | T/T,L/C,Western Union,PayPal |

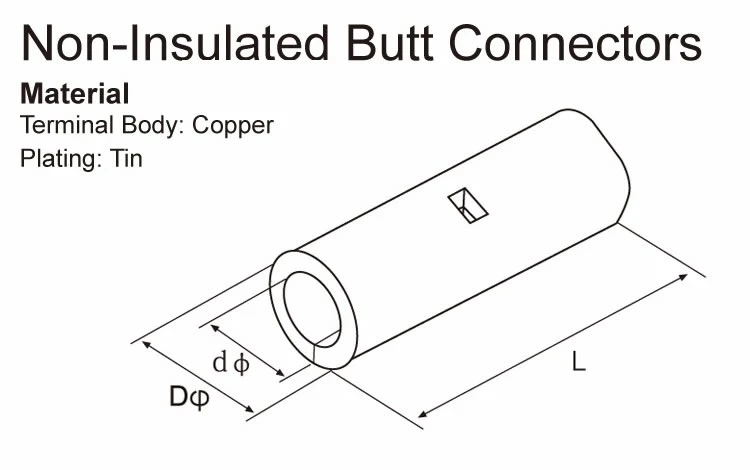

| ITEM NO. | Dimension(mm) | Conductor section | |||
| dΦ | DΦ | L | A.W.G | mm2 | |
| BN1.25 | 1.7 | 3.3 | 15 | 22-16 | 0.5-15 |
| BN2 | 2.3 | 4 | 15 | 16-14 | 1.5-2.5 |
| BN3.5 | 3 | 5 | 15 | 14-12 | 2.5-4 |
| BN5.5 | 3.4 | 5.5 | 15 | 12-10 | 4-6 |
| BN8 | 4.5 | 7.1 | 21 | 8 | 10 |
| BN14 | 5.8 | 9 | 26 | 6 | 16 |
| BN22 | 7.7 | 11.4 | 29 | 4 | 25 |
| BN38 | 9.4 | 13.3 | 32 | 2 | 35 |
| BN60 | 11.4 | 15.4 | 36 | 1/0 | 50 |
| BN70 | 13.3 | 17.5 | 37 | 2/0 | 70 |
| BNT1.25 | 1.7 | 3.3 | 8 | 22-16 | 0.5-1.5 |
| BNT2 | 2.3 | 4 | 8 | 16-14 | 1.5-2.5 |
| BNT5.5 | 3.5 | 5.5 | 8.5 | 12-10 | 4-6 |
