Cable Lugs Al-Cu (B-Type)
- Model:
- Al-Cu(B-Type)
- Type:
- Single Hole Terminals
- Material:
- Copper
- Application:
- Conduct Electricity
- Character:
- High Temperature Resistance
- Species:
- Terminal
- Production Process:
- Cold Pressing
- Shape:
- Round
- Interface Type:
- AC/DC
- Certification:
- Ce
Cable Lugs Al-Cu (B-Type)
Al-Cu(B-Type)
End Aluminium-Copper lugs(friction welded)
Aluminium inside covered with neutral grease for a best electrical contact, closed by a protection cap.

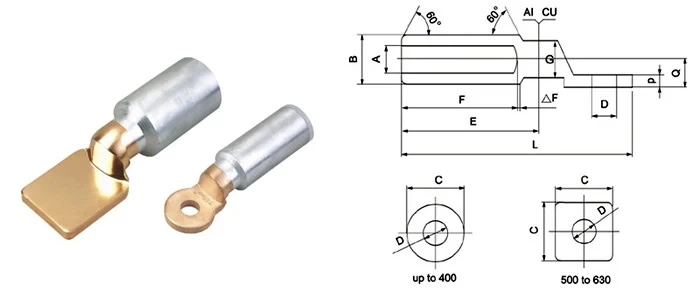

| Psrt No. | Dimensions(mm) | |||||||||
| AL | CU | |||||||||
| A | B | G | C | E | F(△F) | D | P | Q | L | |
| CAU-16 | 5.5 | 16±0.09 | 12 | 24 | 47.5 | 43(2.5) | 10.5 | 4.5 | 11 | 85 |
| CAU-25 | 6.5 | 16±0.09 | 12 | 24 | 47.5 | 43(2.5) | 10.5 | 4.5 | 11 | 85 |
| CAU-35 | 8 | 16±0.09 | 12 | 25 | 47.5 | 43(2.5) | 12.8 | 5 | 11 | 90 |
| CAU-50 | 9 | 20±0.11 | 14.8 | 25 | 47.5 | 43(2.5) | 12.8 | 5 | 13 | 90 |
| CAU-70 | 11 | 20±0.11 | 14.8 | 25 | 47.5 | 43(2.5) | 12.8 | 5 | 13 | 90 |
| CAU-95 | 12.5 | 20±0.11 | 14.8 | 25 | 47.5 | 43(2.5) | 12.8 | 5 | 13 | 90 |
| CAU-120 | 13.7 | 25±0.11 | 18.8 | 30 | 64 | 59(3.0) | 12.8 | 6 | 15 | 115 |
| CAU-150 | 15.5 | 25±0.11 | 18.8 | 30 | 64 | 59(3.0) | 12.8 | 6 | 15 | 115 |
| CAU-185 | 17 | 32±0.11 | 23.8 | 30 | 64 | 59(3.0) | 12.8 | 7 | 19 | 115 |
| CAU-240 | 19.5 | 32±0.11 | 23.8 | 35 | 64 | 59(3.0) | 12.8 | 7 | 19 | 115 |
| CAU-300 | 23.3 | 34±0.13 | 22.5 | 35 | 65 | 72(3.0) | 16.5 | 7 | 21 | 137 |
| CAU-300L | 23.3 | 40±0.13 | 28 | 36 | 100 | 93(3.5) | 16.5 | 7 | 23 | 160 |
| CAU-400 | 26 | 40±0.13 | 28 | 36 | 100 | 93(3.5) | 16.5 | 7 | 27 | 160 |
| CAU-500 | 29.1 | 47±0.4 | 36.8 | 60×60 | 101 | 94(3.5) | 16.5 | 10 | 27 | 200 |
| CAU-630 | 32.5 | 47±0.4 | 36.8 | 60×60 | 101 | 94(3.5) | 16.5 | 10 | 27 | 200 |
| Tolcrance | ±0.12 | -0.6to0 | 0to+1 | -1to0 | -1to0 | ±0.3 | ±0.3 | ±2 | -10to+5 | |
