Terminal Block Copper Connector Electric Fork U Type Plastic Busbar
Terminal Block Copper Connector Electric Fork U Type Plastic Busbar Terminal Block Copper Connector Electric Fork U Type Plastic Busbar Terminal Block Copper Connector Electric Fork U Type Plastic Busbar Terminal Block Copper Connector Electric Fork U Type Plastic Busbar Terminal Block Copper Connector Electric Fork U Type Plastic Busbar Terminal Block Copper Connector Electric Fork U Type Plastic Busbar

Terminal Block Copper Connector Electric Fork U Type Plastic Busbar

Model:
MR-FORK-3P
Type:
Fork Type
Material:
Red Copper (T2 99.6% )
Application:
Conduct Electricity
Character:
Environmental Protection
Species:
Terminal
Production Process:
U
Interface Type:
AC/DC
Certification:
RoHS, ISO: 9001, SGS, Ce, TUV
Rated Current:
32A, 40A, 50A, 63A, 80A, 100A, 125A
Rated Voltage:
415V
Length:
100cm
Appliable Ambient Temperature:
-25~+50
Contact Now

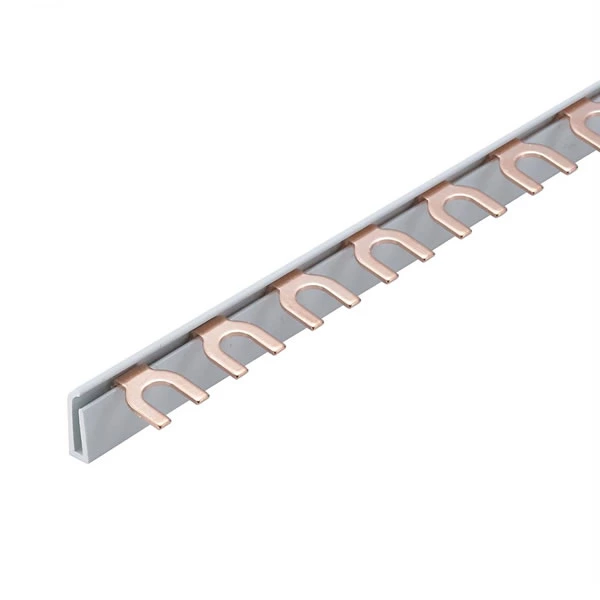

Terminal Block Copper Connector Electric Fork U Type Plastic Busbar

Product Description of U type copper busar:

Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, U type copper busar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

Technical features of U type copper busar:

  1. Material is of fire-resistant PVC and redl copper
  2. Current rating is up to 125A
  3. Rated voltage is up to 415V
  4. Applicable ambient temperature -25~+50
  5. Standard length 1m, other length tol be made upon request.
  6. Good conductivity, low contact resistance, safe and reliable.

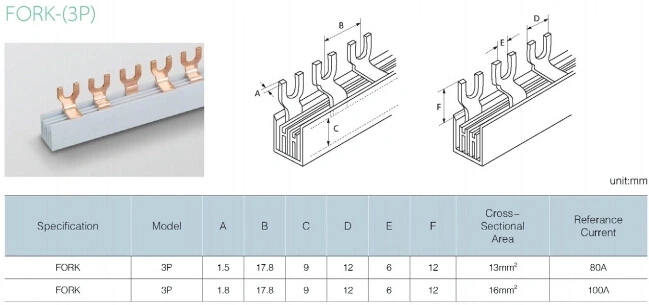

How to choose the U type copper busar:

Packing information:

FORK type Dimension PCS/CTN Packing G.W kgs N.W kgs Material
FORK-1P-32A 1.0*5mm 200 101*22*12 26 25 Copper
FORK-1P-40A 1.2*5mm 100 101*12*9 14 13 Copper
FORK-1P-63A 1.5*7mm 100 101*12*9 16 15 Copper
FORK-1P-80A 1.5*9mm 100 101*14*10 21 20 Copper
FORK-2P-32A 1.0*5mm 50 101*14*8 15 14 Copper
FORK-2P-40A 1.2*7mm 50 101*14*10 18 17 Copper
FORK-2P-63A 1.4*7mm 50 101*14*10 21 20 Copper
FORK-2P-80A 1.5*7mm 50 101*14*10 23 22 Copper
FORK-2P-100A 1.5*9mm 50 101*14*10 23 22 Copper
FORK-3P-40A 1.0*7mm 50 101*22*10 20 19 Copper
FORK-3P-50A 1.2*7mm 50 101*22*10 22 21 Copper
FORK-3P-60A 1.4*7mm 50 101*22*10 24 23 Copper
FORK-3P-63A 1.5*7mm 50 101*22*10 27 26 Copper
FORK-3P-80A 1.5*9mm 50 101*22*10 30 29 Copper
