Copper Material Busbar Pin Type 3 Pole Distribution Box Copper Connector Busbar
- Model:
- MR-PIN-3P
- Type:
- Pin Type
- Material:
- Red Copper (T2 99.6% )
- Application:
- Conduct ElectRed Copper (T2 99.6% )ricity
- Character:
- Environmental Protection
- Species:
- Terminal
- Production Process:
- Press
- Interface Type:
- AC/DC
- Certification:
- RoHS, ISO: 9001, SGS, Ce, TUV
- Rated Current:
- 32A, 40A, 50A, 63A, 80A, 100A, 125A
- Rated Voltage:
- 415V
- Length:
- 100cm
- Appliable Ambient Temperature:
- -25~+50
Copper Material Busbar Pin Type 3 Pole Distribution Box Copper Connector Busbar
Product Description of comb busbar:
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.
Technical features of comb busbar:
- Material is of fire-resistant PVC and redl copper
- Current rating is up to 125A
- Rated voltage is up to 415V
- Applicable ambient temperature -25~+50
- Standard length 1m, other length tol be made upon request.
- Good conductivity, low contact resistance, safe and reliable.

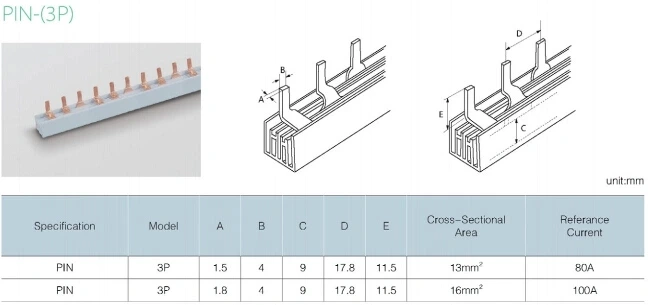

How to choose the comb busbar:
Packing information:
| PIN Type | Dimension | PCS/CTN | Packing(cm) | G.W kgs | N.W kgs | Material |
| PIN-1P-32A | 1.0*5mm | 200 | 101*22*12 | 26 | 25 | Copper |
| PIN-1P-40A | 1.2*5mm | 100 | 101*12*9 | 14 | 13 | Copper |
| PIN-1P-63A | 1.5*7mm | 100 | 101*12*9 | 16 | 15 | Copper |
| PIN-1P-80A | 1.5*9mm | 100 | 101*14*10 | 21 | 20 | Copper |
| PIN-2P-40A | 1.0*7mm | 50 | 101*14*8 | 15 | 14 | Copper |
| PIN-2P-50A | 1.2*7mm | 50 | 101*14*8 | 16 | 15 | Copper |
| PIN-2P-60A | 1.4*7mm | 50 | 101*14*10 | 18 | 17 | Copper |
| PIN-2P-63A | 1.5*7mm | 50 | 101*14*10 | 21 | 20 | Copper |
| PIN-2P-80A | 1.5*9mm | 50 | 101*14*10 | 23 | 22 | Copper |
| PIN-3P-40A | 1.0*7mm | 50 | 101*14*8 | 14 | 13 | Copper |
| PIN-3P-50A | 1.2*7mm | 50 | 101*14*8 | 15 | 14 | Copper |
| PIN-3P-60A | 1.4*7mm | 50 | 101*14*10 | 17 | 16 | Copper |
| PIN-3P-63A | 1.5*7mm | 50 | 101*14*10 | 20 | 19 | Copper |
| PIN-3P-80A | 1.5*9mm | 50 | 101*14*10 | 22 | 21 | Copper |
